SPECIFICATION(HWN15000YD/Y1D/Y2D)

15000 lbs (6804 kgs)

Motor displacement

80ml/r

Oil flow

5～60L/min

Pressure

13Mpa

Gear reduction ratio

33.4:1

Cable (Dia.× L)

Ø15/32"×87 ' (Ø12mm×26.5m)

Drum size(Dia.× L)

Ø3.5 "×8.5" (Ø89mm×217mm)

Mounting bolt pattern

10 "×4.5 " (254mm×114.3mm) 4-M12

Item

HWN15000YD

HWN15000Y1D

HWN15000Y2D

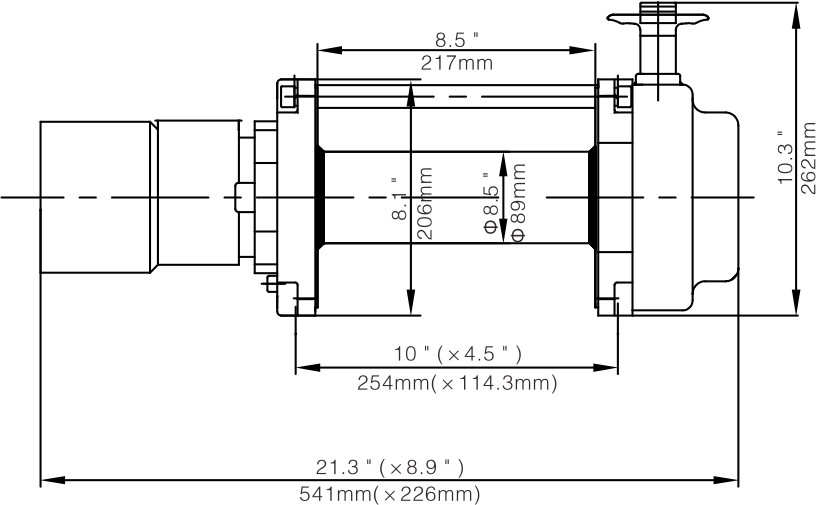

Overall dimensions
(L×W×H)

21.4"×10.0"×10.3"
544mm ×255mm ×262mm

21.4"×10.0"×11.3"
544mm ×255mm ×287mm

21.4"×10.0"×12..1"
544mm ×255mm ×308mm

Net weight
Ibs(kgs)

132 / 60

132 / 60

132 / 60

Pressure
Mpa(Psi)

Flow
G/min (L/min)

Line speed ft/min(m/min)

0

2.0(290.1)

1.3(5.0)

1.6 (0.5)

5000(2268)

4.3(623.7)

2.6(10.0)

3.3(1.0)

10000(4536)

8.7(1261.8)

5.3(20.0)

6.6(2.0)

12000(5443)

10.0(1450.3)

7.9(30.0)

9.8(3.0)

15000(6804)

13.0(1885.4)

15.9(60.0)

19.7(6.0)

Rated line pull
lbs(kgs)

Total rope on drum
ft (m)

1

15000(6804)

18.0(5.5)

2

12120(5498)

40.7 (12.4)

3

10168(4612)

65.9(20.1)

4

8757(3972)

86.9(26.5)
