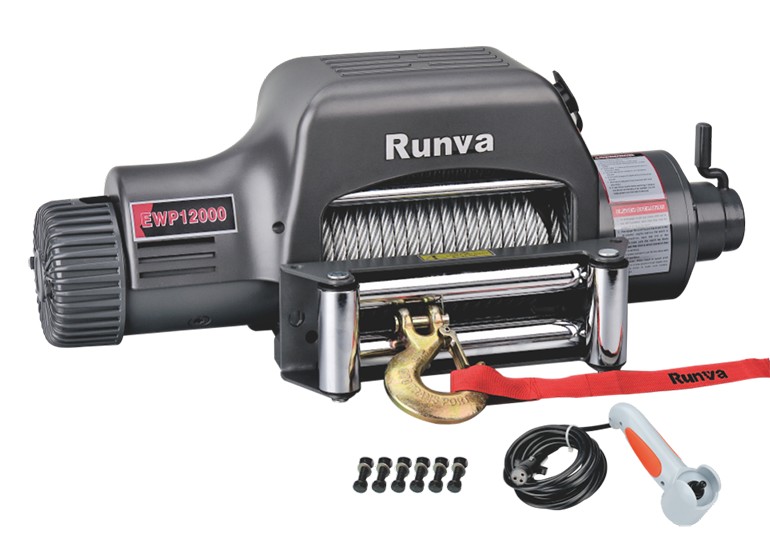

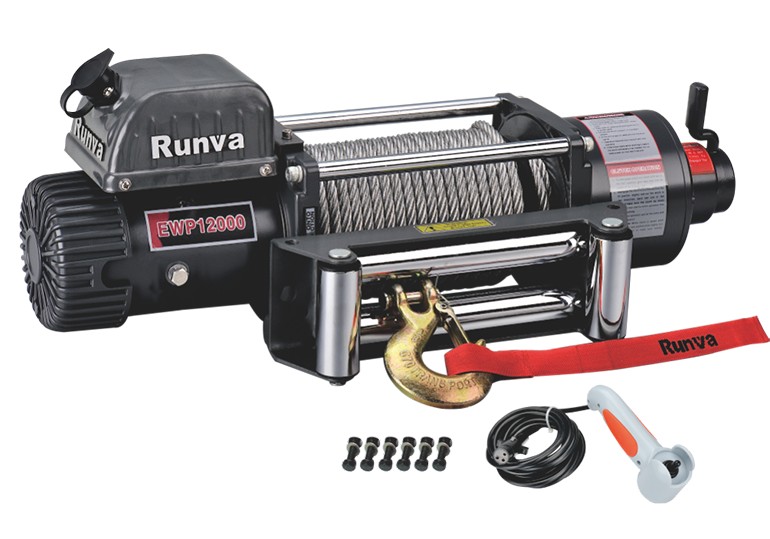

WinchRunva 2 Speed EWP12000U

SPECIFICATION(EWP12000)

Rated line pull

12000 lbs (5443 kgs)

Motor: series wound

12V:Input: 5.4 kW / 7.2hp; Output: 2.7kW / 3.6hp
24V:Input: 6.7kW / 9.0hp; Output: 3.2 kW /4.3hp

Gear reduction ratio

253:1(Low speed); 34.5:1(Fast speed)

Cable (Dia × L)

Ø13/32 "×83.7 ' (Ø10.2mm×25.5m)

Drum size (Dia × L)

Ø2.48"×8.8 " (Ø63mm×223mm)

Mounting bolt pattern

10 "×4.5 " (254mm×114.3 mm) 4-M10

Item

EWP12000U

EWP12000S

EWP12000F

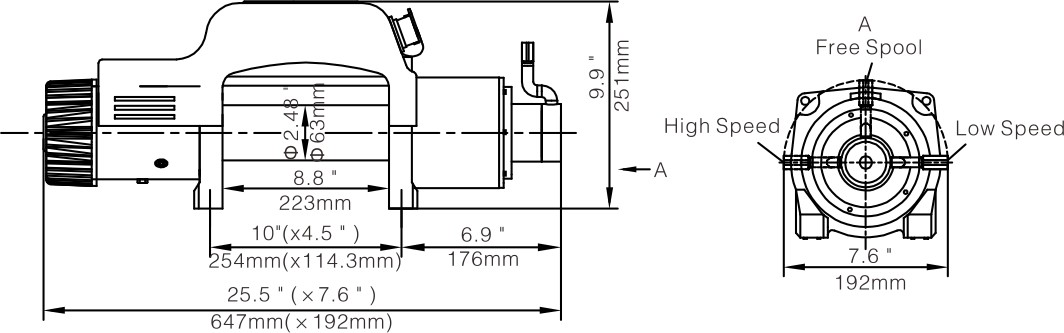

Overall dimensions
(L×W×H)

24.9"×7.6"×10.0"
632mm ×192mm ×254mm

24.9"×7.6"×11.1"
632mm ×192mm ×283mm

25.5"×7.6"×9.9"
647mm ×192mm ×251mm

Net weight
Ibs(kgs)

97.0 / 44.0

98.0 / 44.5

100.0 / 45.5

Pull, Speed, Amperes, Volts(First layer)

Low speed

Fast speed

Current  (A)

Line Pull

Line Speed ft/min (m/min)

Line Pull

Line Speed ft/min (m/min)

lbs (kgs)

12V DC

24V DC

lbs (kgs)

12V DC

24V DC

12V DC

24V DC

0

19.7(6.0)

23.3(7.1)

0

119.0(36.3)

160.8(49.0)

80

70

4000(1814)

10.1(3.1)

9.8(3.0)

556(252)

80.0(24.5)

80.0(24.5)

245

153

7000(3175)

7.8(2.4)

7.8(2.4)

972(441)

62.9(19.2)

62.9(19.2)

300

200

10000(4536)

6.2(1.9)

6.5(2.0)

1389(630)

51.1(15.6)

51.1(15.6)

400

250

12000(5443)

5.2(1.6)

5.8(1.8)

1666(756)

42.6(13.0)

43.3(13.2)

450

280

Line pull and rope capacity in layer

Layer

Rated line pull lbs (kgs)

Total rope on drum ft (m)

1

12000(5443)

16.1(4.9)

2

9562(4337)

36.4(11.1)

3

7948(3605)

60.0(18.3)

4

6800(3084)

83.7(25.5)
