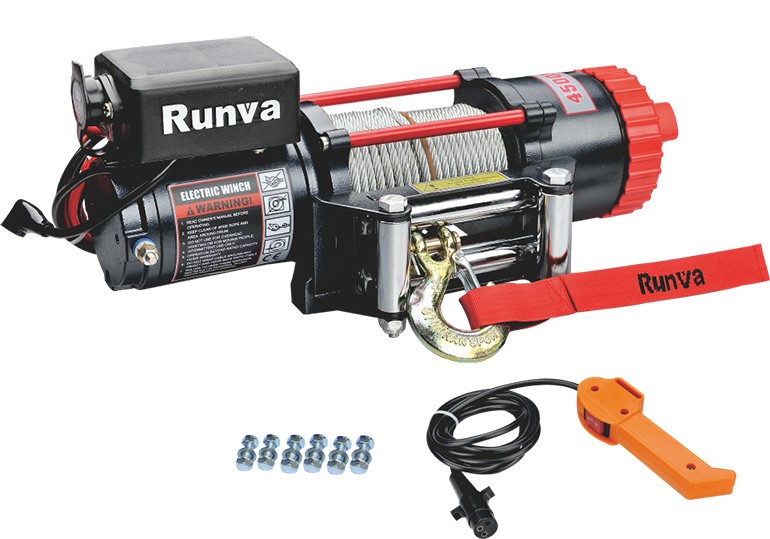

WINCH RUNVA（EWT4500）

4500 lbs (2041 kgs)

Motor: permanent magnet

12V:Input: 2.5kW / 3.4hp; Output: 1.1 kW / 1.4hp
24V:Input: 2.6kW / 3.5hp; Output: 1.2kW / 1.5hp

Gear reduction ratio

166:1

Cable (Dia.× L)

Ø 15/64"×47.6' (Ø 6.0mm×14.5m)

Drum size (Dia.× L)

Ø 2.0"×4.9" (Ø 50.4mm×125 mm)

Mounting bolt pattern

6.6"×3.0" (168mm×76.2 mm) 4-M8

Item

EWT4500D

EWT4500A

EWT4500U

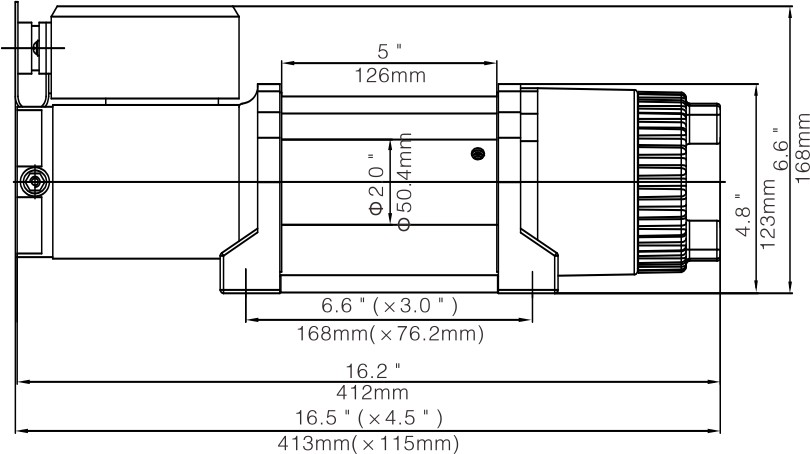

Overall dimensions
(L×W×H)

16.2"×4.5"×4.8"
412mm ×115mm ×123 mm

16.2"×4.5"×4.8"
412mm ×115mm ×123 mm

16.3"×4.5"×6.6"
413mm ×125mm ×168mm

Net weight
Ibs(kgs)

29.8 / 13.5

32.4 / 14.7

32.4 / 14.7

Line Speed  ft/min(m/min)

Current   A

Ibs (kgs)

12V DC

24V DC

12V DC

24V DC

0

12.5(3.8)

14.4(4.4)

28

14

1000(454)

8.5(2.6)

11.1(3.4)

140

50

2500(1135)

6.2(1.9)

8.8(2.7)

170

90

4500(2041)

5.2(1.6)

4.6(1.4)

220

110

Rated line pull  lbs(kgs)

Total rope on the drun  ft(m)

1

4500(2041)

10.8(3.3)

2

3833(1740)

24.0(7.3)

3

3338(1515)

39.4(12.0)

4

2957(1342)

47.6(14.5)
